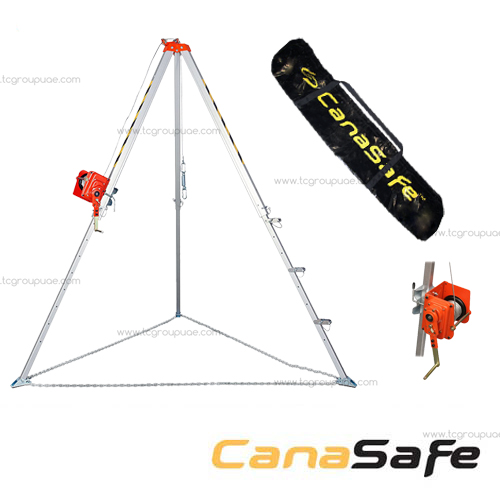

Tripod – LaTCH CS Rescue Lifting Device
53000 LaTCH CS Tripod and #53010 LaTCH CS Rescue lifting device
Features:
- Adjustable Aluminum Telescopic Legs
- “Floating” Steel Feet with Rubber Non-Skid Pads
- Anti-Spread Safety Chain or Webbing (Both Supplied With Unit)
- Hi Strength Cast Aluminum Head
- 4 Eye Bolts – 1 Central and 3 Additional Attaching Points
- Working Height: 1300 mm to 2300 mm
- Foot Spread: 1600 mm to 2360 mm
- Working load limit: 500 kg
- Weight: 14.3 kg
- Complete with Carry Bag
- Made in EU
- Standard: EN 795Further to it,
For LaTCH CS Rescue Lifting device
- New fixing
- Automatic Brake to Avoid Unchecked Descent
- Steel galvanized cable length 20m to 25m
- Lifting / Lowering Winch
- Manual Operation (Power Source Not Required)
- Weight (including rope): 11.5 kg
- 3 mm Diameter Steel Galvanized Cable
What is a Tripod ? and What are the Features ?
Aluminum Tripod LaTCH CS tripod is a component of Personal Protective Equipment against falls from a height. Safety tripod LaTCH CS Tripod has been tested in according to EN 795 as a transportable anchorage class B. The Tripod can use with the LaTCH CS Rescue Lighting Device. The LaTCH CS Rescue Lifting Device should be installed underside the tripod’s leg
#53010 Rescue Lifting Device – Rescue lifting and lowering device class B, with stainless steel rope including natural fiber core, section 6×19, diameter 6.3mm, length from 5m to 25m with automatic brake. Thimble sleeved buckled on the end of the wire cable with a connector, a winch absorber and a winch. To used mounted on the tripod (53000) by a clamp device. Down function is only to lower a person over a distance of 2M
Fall arrest and rescue systems used with this tripods must meet applicable EN Standards requirements
Brochure (s) leaf lets and or technical details further required can be obtained from Three Colours Safety Show Rooms or Store in Sharjah, Dubai, Ajman Or Abu Dhabi during working hours
Most of all, it is manufactured by CANASAFE
