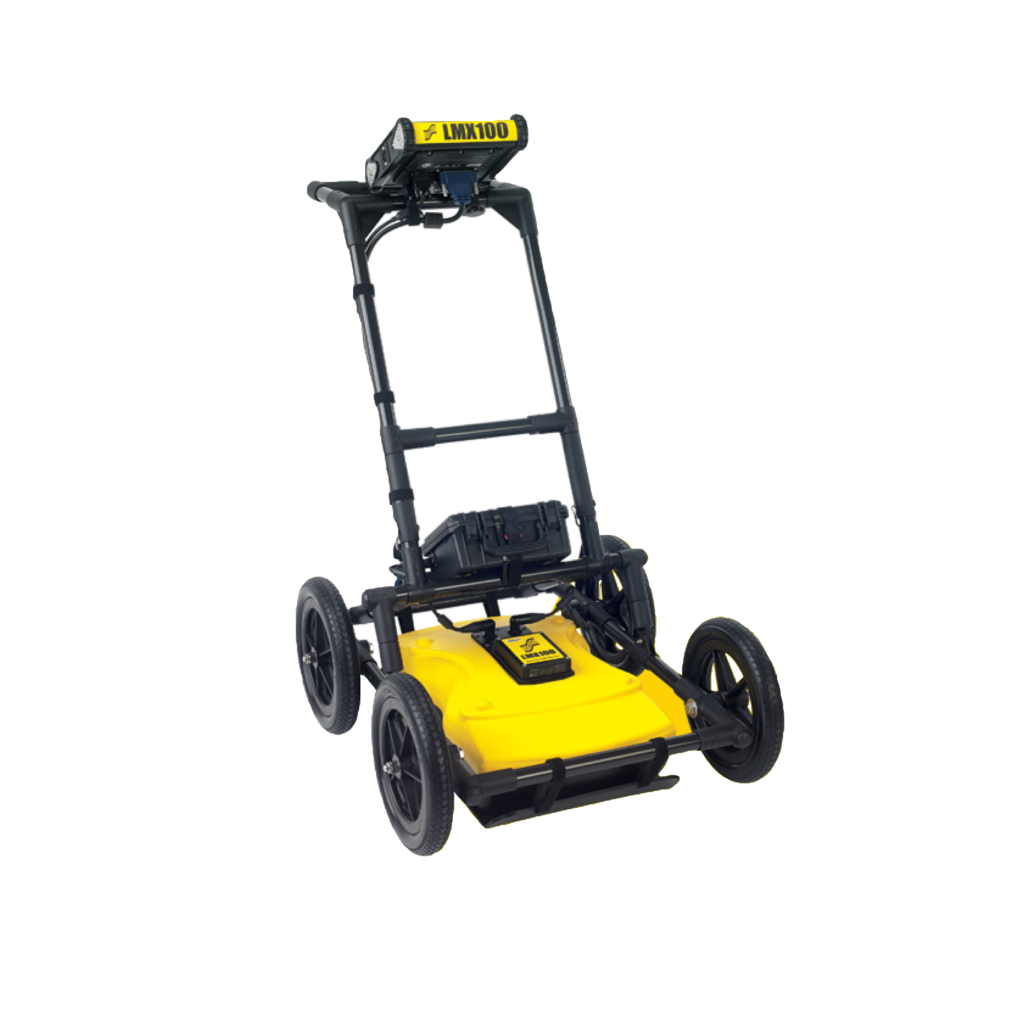

GPR Distributors and Dealers in UAE –
Three Colours Safety Equip Trd LLC is one of the leading GPR (Ground Penetrating Radar) Distributors in the United Arab Emirates. The company sells both brand new and new like pre owned or used machines as well. Icing on the cake is that Three Colours sells the units at a price and service that cannot be offered by competitors.
What is GPR
GPR means Ground Penetrating Radar. It is an equipment uses electromagnetic waves to image the subsurface. The main advantage of the system is that it will not do any destruction of area while finding hidden things underneath. Best example to make one understand is an X-Ray system of earth or Ground.
How GPR works?
The following are the step-by-step GPR functioning: –
Transmitting a Signal: A GPR system has a transmitter antenna that sends short pulses of high-frequency radio waves (typically between 10 MHz and 2.6 GHz) into the ground.
Wave Propagation and Reflection: These electromagnetic waves travel into the subsurface and are affected by the electrical properties of the materials they encounter (like dielectric permittivity and electrical conductivity). When a wave hits an interface between materials with different electrical properties (e.g., soil and a buried pipe, or different layers of soil), a portion of the energy is reflected back towards the surface. The rest of the energy continues to travel deeper until it encounters another interface or dissipates.
Receiving the Signal: A receiving antenna on the GPR system detects these reflected waves.
Data Acquisition and Processing. The GPR control unit measures the strength (amplitude) of the reflected signal. And the time it takes for the signal to travel to the subsurface feature and back (two-way travel time). Unit records this information.
Creating an Image (Radargram). As the GPR antenna is moves across the ground, it collects a series of these reflected signals. The control unit processes this data and creates a visual profile of the subsurface, often called a radargram or a GPR image. This image displays the depth of features. And variations in the subsurface based on the strength and arrival time of the reflected signals. Anomalies in the radargram can indicate the presence of buried objects, changes in soil layers, voids, or other subsurface features.
Essentially, GPR works by “bouncing” radio waves off subsurface features and analysing the “echoes” to create an image of what’s beneath the surface. The stronger the contrast in electrical properties between materials, the stronger the reflection and the easier it is to detect a feature.
What are the uses of a GPR?
GPR is a versatile tool with numerous applications across various fields, including:
Utility Location: Detecting buried pipes, cables, and other underground infrastructure.
Archaeology: Identifying buried structures, artifacts, and other historical features.
Geotechnical Investigations: Assessing soil layers, bedrock depth, groundwater tables, and detecting voids or sinkholes.
Construction and Engineering: Inspecting concrete structures for rebar, conduits, and voids; assessing the thickness of pavements and other materials.
Environmental Assessment: Locating buried storage tanks, drums, and mapping contamination.
Law Enforcement and Forensics: Locating buried evidence or clandestine tunnels.
Mining: Identifying mineral deposits and mapping underground structures.
Ice and Snow Studies: Measuring ice thickness and detecting buried objects in snow.
The depth of penetration and the resolution of GPR depend on factors like the antenna frequency used and the electrical properties of the ground. Higher frequencies provide better resolution but less penetration, while lower frequencies offer greater penetration but lower resolution. Materials with high electrical conductivity, like clay soils with high water content, can limit the depth of penetration.
GPR Distributors and Dealers in UAE
